Bosch Rexroth Type Hydraulic Solenoid Valve Repair Kit Coil 12VDC 24VDC 110VAC 220VAC 19W

Bosch Rexroth Type Hydraulic Solenoid Valve Repair Kit Coil 12VDC 24VDC 110VAC 220VAC 19W

Brando hydraulic solenoid coils for directional and proportional valves ensure the correct and safe supply of the corresponding control current. Practically all coil voltages are available from stock in a large selection of plug variations. Special voltages and special coil designs are available upon request. The solenoid coil is available in standard voltages of 12, 24, 110, 120, 220 and 240 volts, depending on the power required for the solenoid valve. Thanks to its exceptional winding, the coil is very small has a high power output.

Rexroth solenoid coil is also known as Rexroth solenoid valve coil or Rexroth coil. The solenoid coil works as an actuator based on electromagnetic induction principle. When the flowing of electricity passes through a wire, it creates an electromagnetic field around this wire. The wire in the electromagnetic field will develop the electromagnetic interaction on other wires in the range of electromagnetic field. The interaction works on the wire itself called self-induction, which means the wire creates electricity and turns it into the electromagnetic field on its own. The electromagnetic field created by the self-induction has further influence on the current in the wire. There is a relative concept named mutual induction, which means the wire have electromagnetic interaction on other wires around the electromagnetic field.

Dimension & Data of Hydraulic Solenoid Valve Coil:

Picture	Dimension	Model	BB23250504
		Voltage	12VDC, 24VDC, 110VAC, 220VAC
		Power	30W
		Connector Type	DIN43650A
		Insulation Class	F
		Protection Class	IP65

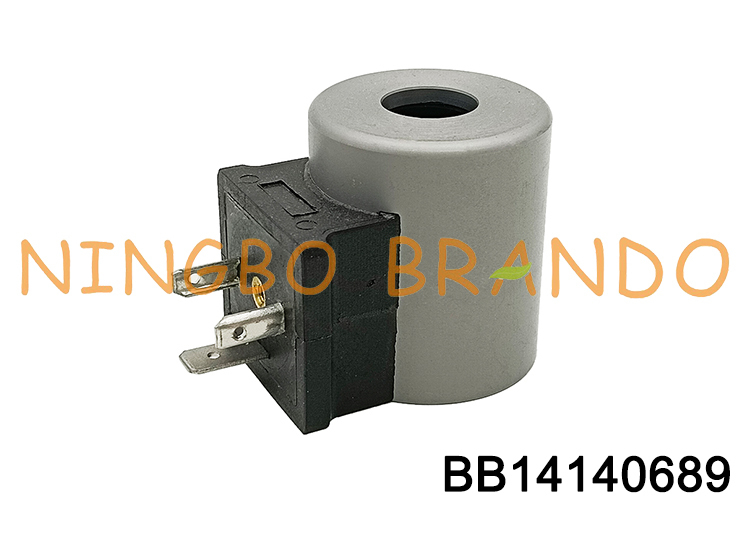

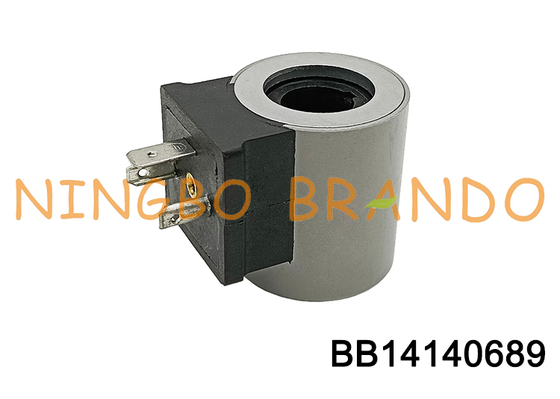

Picture	Dimension	Model	BB14140689
		Voltage	12VDC, 24VDC, 110VAC, 220VAC
		Power	29W
		Connector Type	DIN 43650A
		Insulation Class	F
		Protection Class	IP65

Picture	Dimension	Model	BB22046009
		Voltage	110VAC, 220VAC
		Power	28W
		Connector Type	DIN43650A
		Insulation Class	H
		Protection Class	IP65

Picture	Dimension	Model	BB23745309
		Voltage	110VAC, 220VAC
		Power	28W
		Connector Type	2 Pins (Plug In Type)
		Insulation Class	F
		Protection Class	IP65

Brando Factory Production of Solenoid Valve Coil:

Other hydraulic solenoid valve coil fo you to choose:

Vickers Type Hydraulic Solenoid Valve Coil:

Yuken Type Hydraulic Solenoid Valve Coil:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
