Αρχική Σελίδα ΠροϊόνταΑυτόματη βαλβίδα αγωγών αεροσυμπιεστών

720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor

720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor

  • 720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor
  • 720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor
720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor
Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: BRANDO
Πιστοποίηση: None
Αριθμό μοντέλου: BT-720
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 5 τεμ
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Εσωτερικό κουτί, χαρτοκιβώτιο, παλέτα
Χρόνος παράδοσης: Διαπραγμάτευση
Όροι πληρωμής: T/T,Western Union,MoneyGram
Δυνατότητα προσφοράς: 100000 τμχ το μήνα
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Όνομα προϊόντος: Χρονόμετρο βαλβίδων σωληνοειδών Χρόνος ΕΠΑΝΩ: Από 0,5 σε 10s
Χρόνος ΜΑΚΡΙΑ: Από 0,5 έως 45 λ. Δείκτες: Κίτρινες οδηγήσεις
Εισερχόμενο ρεύμα: 10A για 10ms Χειροκίνητη παράκαμψη: Δοκιμή
Κατηγορία Προστασίας: IP65 Λήξη: DIN 43650 FROM A
Επισημαίνω:

Solenoid Valve Timer Controllers

,

Electronic Timer of Air Compressor Drain Valve

,

Electronic Drain Valve Drain Valve timer

720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor

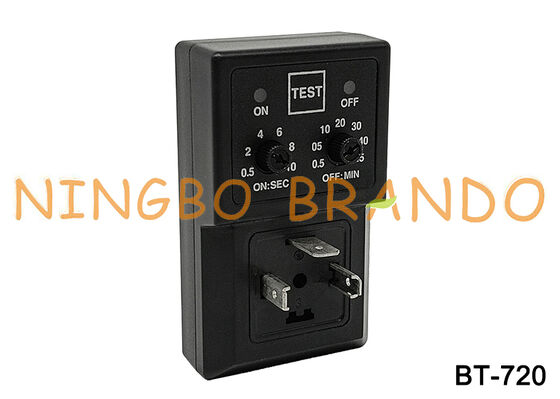

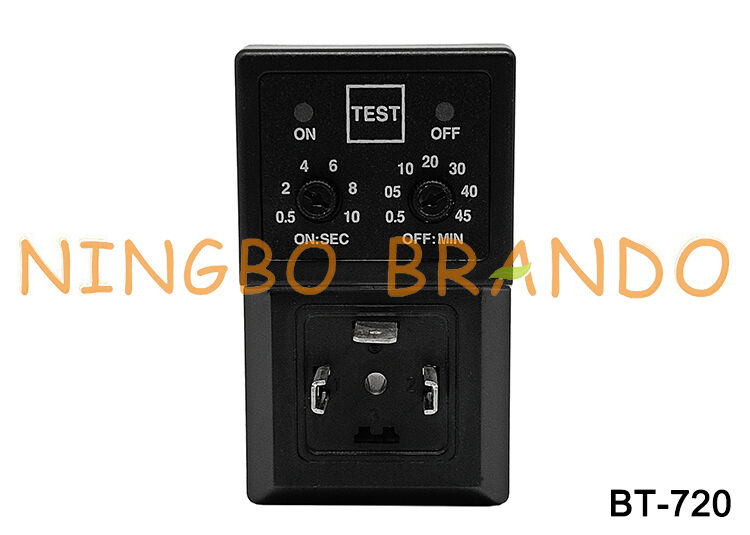

This device is a Brando BT-720 series analog timer designed for solenoid valves.


Application: It is commonly used for automatic draining in air compressors, shower timers, and pneumatic systems.


Adjustability: The timer features knobs to adjust the "ON" time (0.5 to 10 seconds) and the "OFF" time (0.5 to 45 minutes).


Connection: It utilizes a standard DIN 43650-A connector and mounts directly onto a solenoid valve coil.


Features: The unit includes a flame-retardant ABS shell, IP65 protection rating, and a manual test button.


Technical data of Solenoid Valve Timer:

Supply voltage
24V to 240V AC/DC 50Hz/60Hz
Absorption current
4mA Max
Operating temperature
-10℃ to +50℃
Class protection
IP65-EN 60529
Switch holding voltage
400V Max
Switch capacity
1A
Inrush current
10A for 10ms
Duty cycle
100%ED
Switch life
3x10^8
Time ON
from 0.5 to 10s
Time OFF
from 0.5 to 45min
Indicators
Yellow LED
Manual override
Test
Termination
DIN43650A


Dimension of Solenoid Valve Timer:

720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor 0


Product video of Solenoid Valve Timer:


More Solenoid Valve Timers for you to choose:

720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor 1 720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor 2 720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor 3 720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor 4


More Products for Air Compressor Auto Drain Valve:

720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor 5 720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor 6 720 series DIN 43650A Electronic Digital Cyclic Timer Switch for Air Compressor 7
Auto Drain Valves Solenoid Valve Coil Solenoid Valve Armature


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
